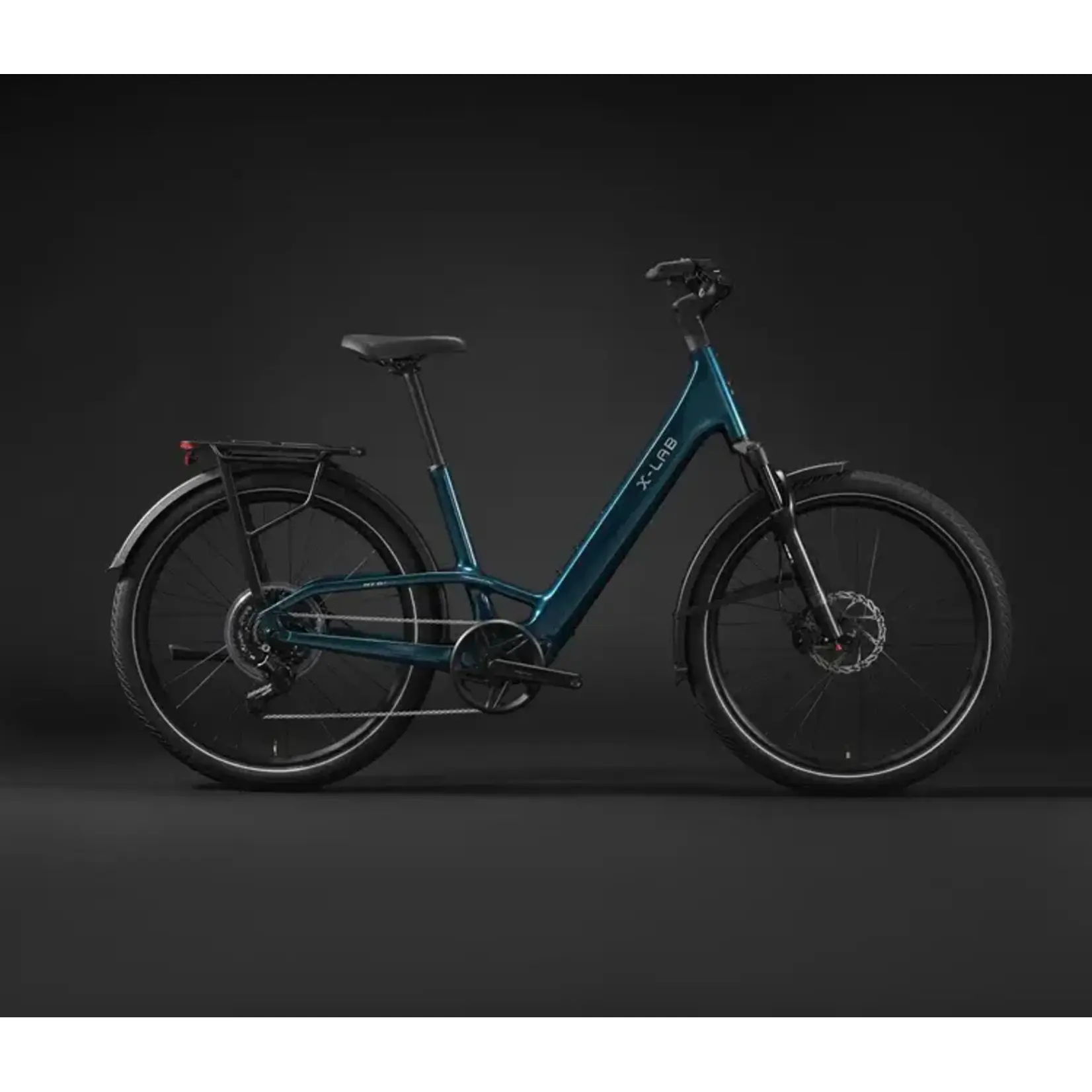

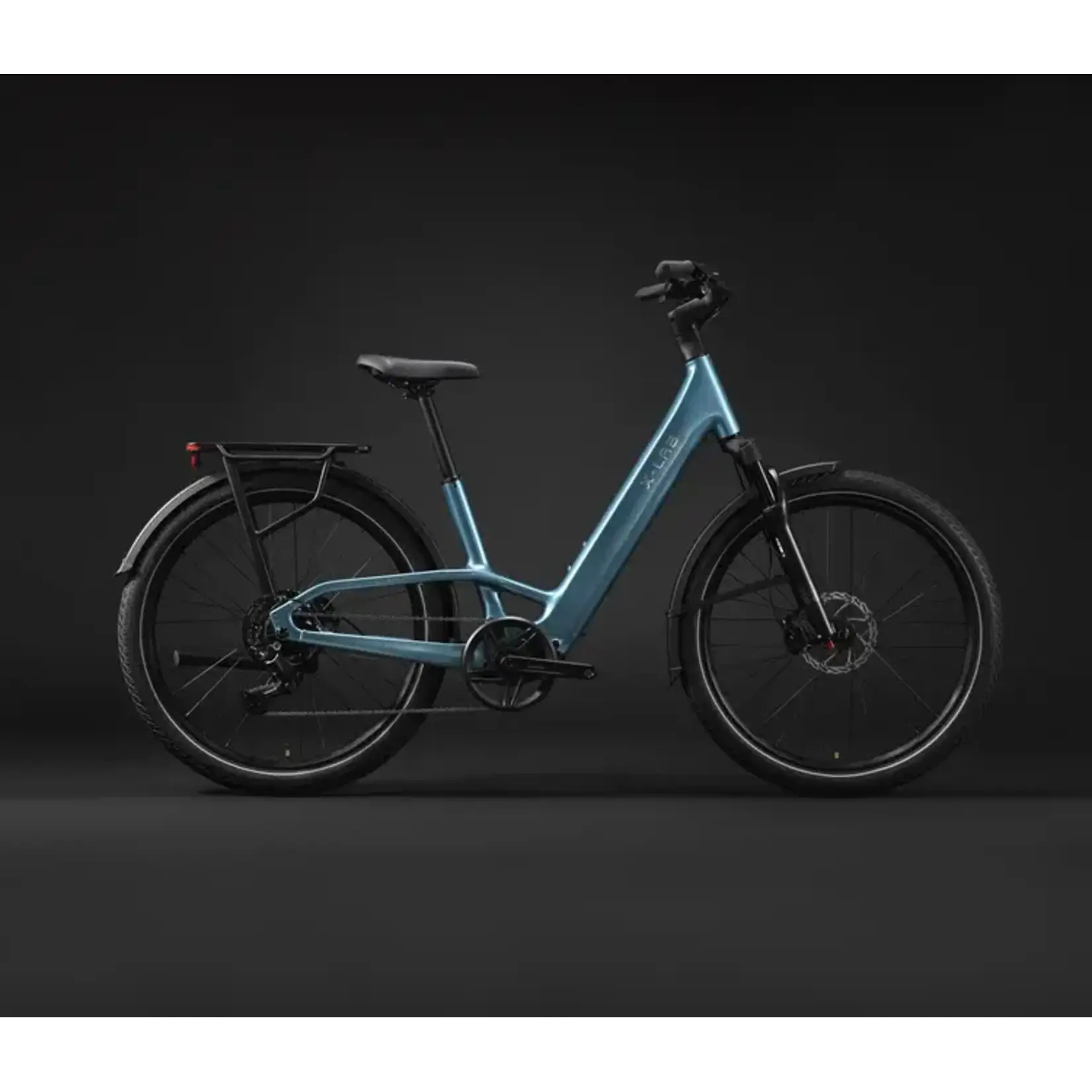

The ST5+ LS brings X-LAB engineering to modern urban mobility.
Powered by an integrated electric system and built on a refined aluminum platform, the ST5+ LS delivers smooth acceleration, confident handling, and the comfort needed for everyday riding.
Designed for riders who want more from their city bike, the ST5+ LS makes commuting faster, cleaner, and far more enjoyable.
From daily travel to spontaneous detours, the ST5+ LS transforms the way you move through the city.
Technical Specifications
FRAME
XDS X6 Aluminum Frame, UDH Compatible
FORK
XDS Suspension Fork, Coil Spring, 80mm Travel,
110x15mm Thru-axle
HANDLEBAR / STEM
Branta Aluminum Integrated, w/ Monitor & Front light, 680mm
Width, 90mm Length, 8 Degree Rise, 28 Degree Backsweep
SEATPOST
XDS Aluminum Seatpost, 31.6mm
REAR DERAILLEUR
Shimano Cues RD-U4000, 9-Speed
BRAKES
Branta E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever,
4 Pistons Caliper
CASSETTE
Shimano CS-LG300 11-46T, 9-Speed
CRANKSET
Branta Aluminum Crankset, 46T, Narrow-wide Teeth
MOTOR
XDS Mid-drive X800 Motor, 250 Watt Maximum Continuous
Rated Power, 470 Watt Peak Power, 85N.m. Peak Torque
BATTERY
XDS Rechargeable Li-ion Battery, 619Wh
ROTORS
Branta 180Z, F:180mm R:180mm
WHEELSET
Branta Aluminum E-Bike Wheelset
TIRES
CST CTC-06, 27.5"x2.4, 30TPI, w/ Reflective Strips
