- "The motor itself is very quiet... on normal cruising, it's nearly silent." - BikeRumor
- Lightweight build at ~37 lbs for convenient commutes
- Mid-Drive Motor (85Nm peak)
- 339Wh battery + up to 50+ mile commuting range
- UL Tested + Find My + Integrated Display

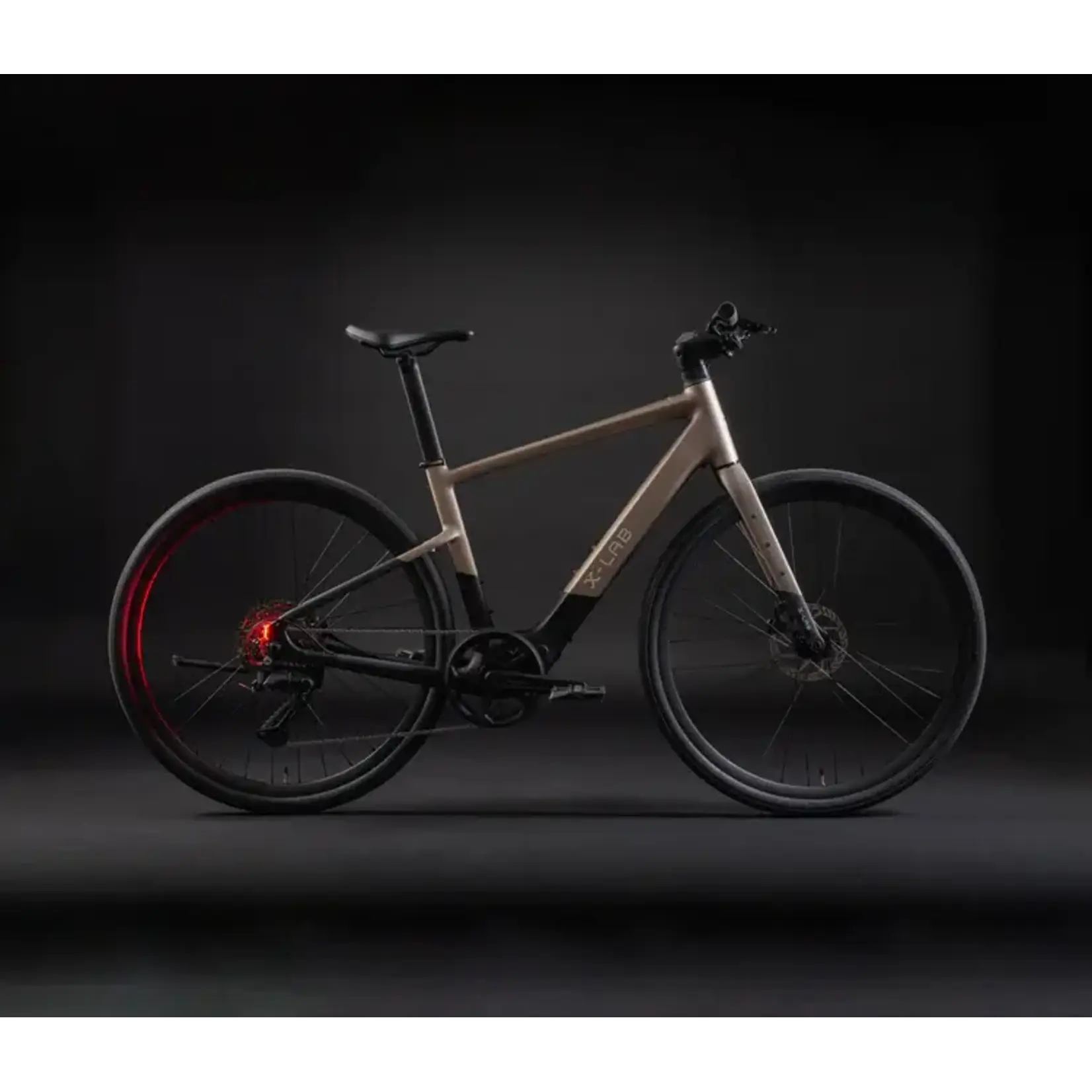

The SP5+ is built to make electric cycling simple, smooth, and accessible.
Its lightweight frame and intuitive electric assist provide effortless acceleration and reliable range, helping riders cover longer distances with ease.
Balanced geometry and durable construction ensure stability and comfort whether you're commuting, exploring your neighborhood, or enjoying weekend rides.
The SP5+ proves that electric mobility can be both practical and fun, with an element of fitness built in.
Technical Specifications
FRAME
XDS X6 Alloy Frame, UDH Compatible
FORK
XDS Carbon Fork, 100x12mm Thru-axle
HANDLEBAR / STEM
Branta Alloy Integrated, w/ Display & Front Light, 680mm
Width, 90mm Length, 6 Degree Rise, 9 Degree Backsweep
SEATPOST
XDS Alloy Seatpost, Aero Shape, 350mm Length
REAR DERAILLEUR
Shimano Cues RD-U4000, 9-Speed
BRAKES
Branta EC215D Hydraulic E-Bike Brake, w/ Cutoff Switch, 3 Finger Lever,
2 Piston Caliper
CASSETTE
Shimano CS-LG300 11-46T, 9-Speed
CRANKSET
Branta Alloy Crankset, 46T, Narrow-wide Teeth
MOTOR
XDS Mid-drive X800 Motor, 250 Watt Continuous Rated Power, 400 Watt Peak Power, 85Nm Peak Torque, Dual-sided Torque Sensor
BATTERY
XDS Rechargeable Li-ion Battery, 339Wh, LG Battery Cells, 3A Charger (0-100% 3hr 15min)
LIGHTS
Integrated F+R Lights (+ Brake Lights)
SPEED
Pedal-assist and Throttle, Class 2 20mph (Unlock to Class 3 via the X-Lab Bikes Mobile App)
RANGE
Ride up to 50 miles on a Single Charge
TESTING AND COMPLIANCE
UL2271 and UL2849 Certified, Ingress Ratings: Complete Bike IP54, Battery IPX7, Motor and Other Electronics IPX6
LOAD CAPACITY
Max Load 265 lbs (120 kg)
CONNECTIVITY
Apple Find My Anti-Theft Technology, Bluetooth, OTA Updates
ROTORS
Branta Z8, F:160mm R:160mm
WHEELSET
Branta Alloy E-Bike Wheelset
TIRES
Branta R240, 700x40C, 30TPI
Max Tire Clearance: 45C w/ Full-Wrapped Fender
