BUILT TO PUSH THE LIMITS OF ENDURO.
The "S" model designation is given to a build/model that pushes the limits of that segment. The new Tracer S model pushes the limits of Enduro/Freeride with a top-spec Ohlins suspension platform, DH casing tires, and powerful Magura MT7 Pro brakeset.
Borrowing design inspiration and technology from our M29 downhill bike, utilizing its bottom link driven rear shock and suspension design, we have created a bike with plush travel for the roughest of descents, and a firm pedal platform when needed. We’ve positioned the rear shock low down and centered in the frame, allowing the Tracer to descend and handle terrain impeccably.

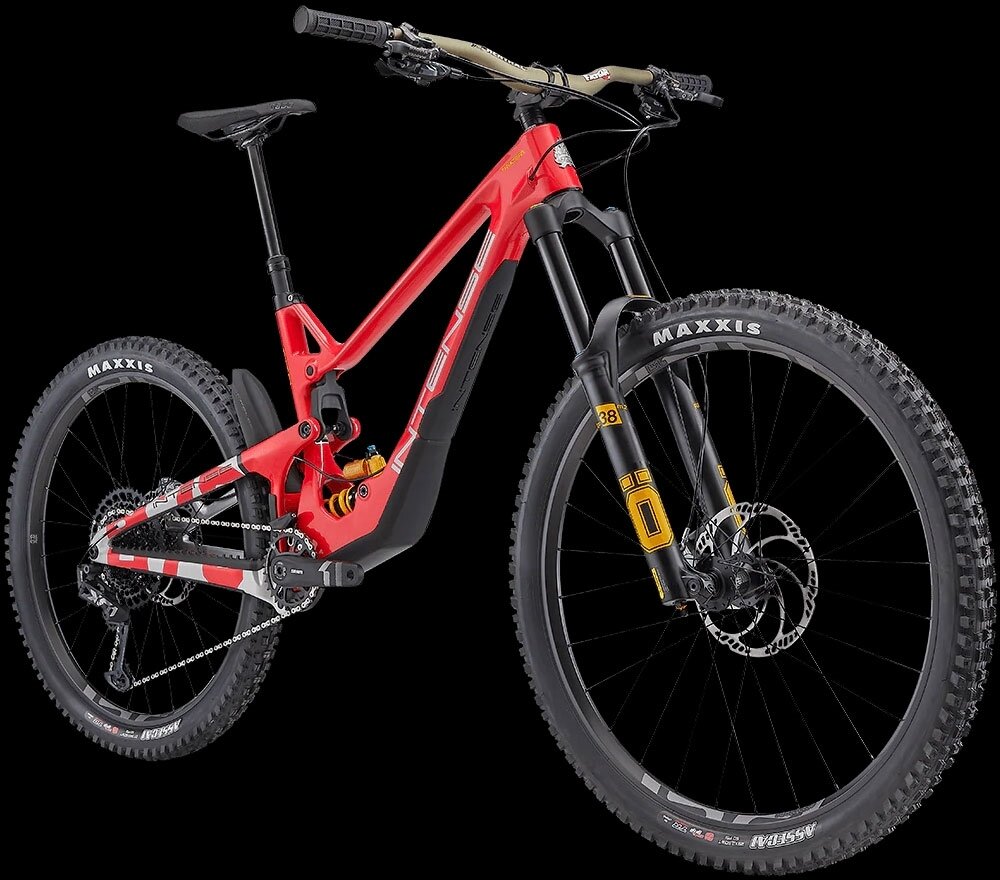

The INTENSE Tracer S Enduro bike has been completely reengineered for 2022. With 170mm (6.7”) of travel and a staggered wheelset (29” front/ 27.5” rear), we have created a bike that is stable and capable while also fast, fun and agile.
STAGGERED WHEELS = STAGGERING SPEED.
The Tracer S has been designed around a staggered wheelset. Taking what we've learned from our staggered wheel Tazer, we've found a great balance of agility and stability. When the trails get tight or you're looking to shave time off of race stages, the new Tracer is ready.
FLIP CHIP GEOMETRY ADJUSTMENT.
The INTENSE Tracer 279 has a ‘Flip Chip’ feature which allows you to alter the geometry of your bike between two positions. The bike comes from our factory in the HI (High) setting. The HI setting is engineered to perform the best in the roughest and most technical terrain. The LO setting is engineered to perform the best in slightly smoother, high speed trails such as what could be found in many bike parks. The LO setting will slacken the head angle a little, lower the bottom bracket and standover, shorten the reach by 5mm, creating slightly firmer suspension.. What position you have the Flip Chip in comes down to personal preference, riding style and the type of terrain you normally ride on.
The Flip Chip on the INTENSE Tracer 279 is located on the Lower Link of the suspension system where it bolts onto the rear shock. With the bike fully built the Flip Chips are hidden, so in order to gain access to them you will need a 5mm Allen key and a torque wrench. The basic process involves removing the rear wheel, unbolting the Rear Triangle from the Top Link, which will then give you access to the Bottom Link and the Flip Chips.
|Frame||Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the ‘tube bag’ included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing)|
|Fork||Öhlins RXF 38 m.2 ,170mm, dual air spring, compression and rebound adjustment, solid front axle with pinch bolt (110mm boost spacing) 44mm offset|
|Headset||Cane Creek 40 Top ZS49/28.6mm, Bottom ZS56/40|
|Rear Shock||Öhlins TTX22M Coil, 3 position high speed compression, low speed compression and rebound adjustment Shock size/Stroke: 205mm x 65mm upper Trunnion mount, Lower Mounting Hardware: 8mm x 20mm.|
|Rims/Wheels||E Thirteen LG1 Enduro 30MM alloy rim 28h|
|Hubs||Front updated E Thirteen race hub 28h 6-bolt rotor 110mmx15mm boost front / Rear updated E Thirteen race hub 28h 6-bolt rotor XG driver body, 148mmx12mm boost|
|Spokes||Hive triple-butted black steel spokes|
|Tires||Front: Maxxis Assegai WT Maxx Terra 3C MaxxGrip DH 29" x 2.50" Rear: Maxxis Assegai WT Maxx Terra 3C MaxxGrip DH 27.5" x 2.50"|
|Crankset||Sram X1 Eagle Carbon 12SP / DUB / 30t / 170MM / Boost / 52mm Chainline|
|Chainwheel||Sram XG 1275 Eagle 12sp. 10-52t.|
|Bottom Bracket||Sram DUB Threaded|
|Chain||Sram GX Eagle 12SP 118 links|
|Rear Derailleur||Sram X01 Eagle 12SP|
|Shifters||Sram GX Eagle 12SP|
|Handlebars||Renthal Fatbar Alloy 35mm, 30mm rise / 800mm|
|Tape/Grips||INTENSE Logo Lock-on|
|Stem||INTENSE Recon 35mm / 40mm length|
|Brakes||Magura MT7 Pro, 4-piston caliper - Front Rotor Magura Storm HC - 203mm 6-bolt / Rear Rotor Magura Storm HC - 203mm 6-bolt|
|Saddle||SDG Radar Lux-Alloy Rails|
|Seat Post||E Thirteen Infinite Dropper I-Spec 150mm SM /180mm MD, LG / 210mm XL (Frame Size Specific)|
|Accessories & Extras||Chad Storage System|
* Subject to change without notice.
|Red / Large||2100000235490|
