An Enduro bike needs to do two things: eat-up mountainous terrain on the downhills and climb back up to do it all again.

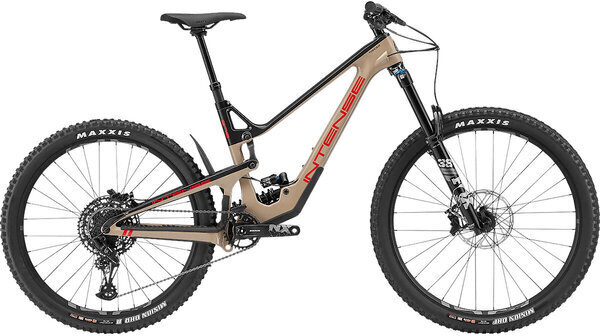

Borrowing design inspiration and technology from the M29 downhill bike, utilizing its bottom link-driven rear shock and suspension design, INTENSE has created a mountain bike with plush travel for the roughest of descents and a firm pedal platform when needed. The rear shock is positioned low down and centered in the frame, allowing the Tracer to descend and handle terrain impeccably.
|Frame||Full carbon fiber front and rear triangle utilizing an optimized carbon layup for the ENDURO category. Features fully guided Internal cable routing, carbon top link, titanium hardware, ISCG-05 tabs, threaded BB and updated molded frame protection and shuttle guard. Concentric bottom link with integrated flip chip to adjust GEO. Integrated CHAD Storage system with the ‘tube bag’ included. 170mm of rear wheel travel. Quick release rear axle (148mm boost hub spacing).|
|Fork||FOX Performance 38 Float 170mm with GRIP Damper quick release front axle (boost 110 hub spacing) 44mm offset|
|Headset||INTENSE Top ZS49/28.6mm, Bottom ZS56/40|
|Rear Shock||FOX Performance elite DHX2 coil, rebound adjustments, 2 position climb switch, Shock size/Stroke: 205mm x 65mm upper mounting hardware Trunnion Lower Mounting Hardware: 8mm x 30mm.|
|Rims/Wheels||e*Thirteen LG1 Enduro 30MM Alloy Rim / INTENSE alloy hub/boost|
|Hubs||Front - INTENSE alloy hub 32h 6-bolt rotor 110mmx15mm boost front / Rear - INTENSE alloy hub 32h 6-bolt rotor HG driver body 148mmx12mm boost|
|Spokes||DT Swiss 2.0 Straight Gauge|
|Tires||Front: MAXXIS Minion DHF Maxx Terra 3C EXO+29"x250" / Rear: MAXXIS Minion DHR II Maxx Terra 3C EXO+27.5"x2.40"|
|Crankset||SRAM NX Eagle 12SP / DUB / 32t / 170MM / Boost / 52mm Chainline|
|Bottom Bracket||SRAM DUB Threaded|
|Chain||SRAM NX Eagle 12SP 118 links|
|Rear Derailleur||SRAM NX Eagle 12SP|
|Shifters||SRAM NX Eagle 12SP|
|Handlebars||e*Thirteen 35mm bar with 20mm rise, 800mm width|
|Stem||e*Thirteen 35mm stem, 40mm length|
|Brakes||SRAM Code R 4-piston - Front Rotor 200mm 6-bolt 1.8mm / Rear Rotor 200mm 6-bolt 1.8mm|
|Saddle||WTB Silverado Sport w/steel rails|
|Weight||37 lbs // 16.78 kg|
* Subject to change without notice.
|Tan / Medium||2100000233168|
